| Brand Name: | Huihua |
|---|---|
| Minimum Order Quantity: | 1kg |
| Price: | Negotiable |
| Delivery Time: | no limit |
| Payment Terms: | T/T |
| Supply Ability: | 100t/year |
| Material: | Pure Nickel | Application: | Battery |
|---|---|---|---|
| Application2: | Tab | Advantage: | Weldability |
| Color: | Nickel Color | Standard: | DIN GB ISO JIS BA ANSI |
| High Light: | high purity nickel strip,nickel strip tape,High Purity Nickel 200 Strip |
||

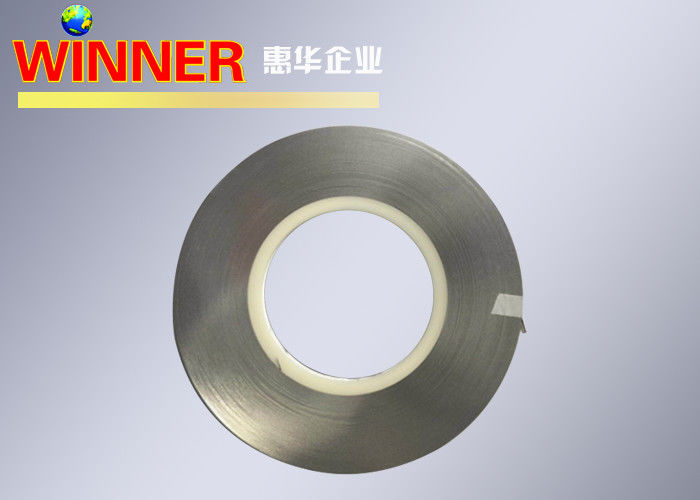

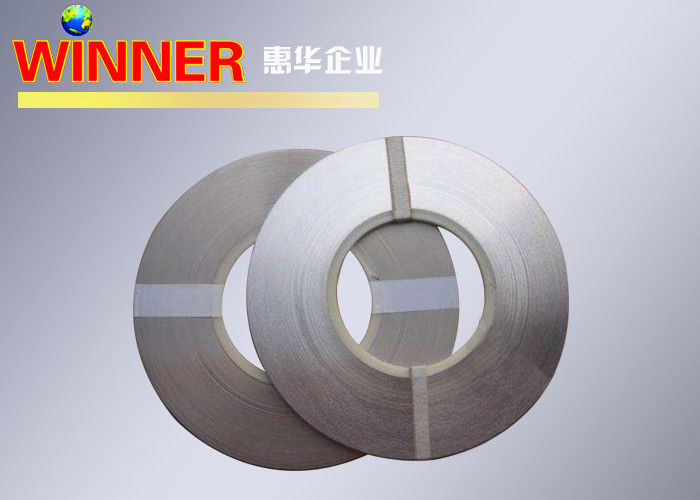

Pure nickel belt Ni200/Ni201/18650 Battery nickel with pure nickel for battery welding
The conductivity of current through nickel is much greater than that of steel. This is what makes the Huihua roll of Pure Nickel Strip, which consists of 99.6% Nickel, ideal for spot welding and building battery packs. Lithium-ion cells are made in various sizes, often assembled into packs (commonly referred to as battery packs) for portable equipment. Many battery packs also include an internal protection circuit to prevent over-discharge and short-circuit damage. This can increase their physical length of the Lithium-ion battery pack. For example, an 18650 is around 65 mm (2.6 in) in length, but can be up to 68 mm (2.7 in) long if an internal protection circuit is added. To recharge these cells in a safe and economic fashion, the use of a charger specified for these cells is required. Some popular applications include but are not limited to, laptop battery packs, electronic cigarettes, electric vehicles, and cordless power tools. This package of Huihua 1kg (2.2lbs) Roll of Pure Nickel Strip is perfect for building battery packs.
1. Commercially pure wrought Nickel with good mechanical properties over a wide range of temperature and excellent resistance to many corrosives, in particular hydroxides.
2. Good resistance to corrosion in acids and alkalis and is most useful under reducing conditions.
Outstanding resistance to caustic alkalis up to and including the molten state. In acid, alkaline and neutral salt solutions the material shows good resistance, but in oxidizing salt solutions severe attack will occur.
3. Resistant to all dry gases at room temperature and in dry chlorine and hydrogen chloride may be used in temperatures up to 550C. Resistance to mineral acids varies according to temperature and concentration and whether the solution is aerated or not. Corrosion resistance is better in de-aerated acid.
| Parameter table | |
|
Product Name |
Pure nickel belt Ni200/Ni201/18650 Battery nickel with pure nickel for battery welding |
| Grade | Ni200/Ni201 |
| Material | nickel |
| Color | nickel white |
| Standard | DIN GB ISO JIS BA ANSI |
| Place of Origin | China |
| Used | Lithium battery and 18650 battery, etc |
Mainly used for connecting plates of inner ears and batteries of nickel-hydrogen, nickel-cadmium and lithium batteries; pins of PTC overcurrent protection elements; some electrovacuum elements such as sodium lamp, halogen lamp and metal halide lamp; some cores N6 and NIe0.1 soft (outer covering of D solder) etc. while stainless steel and 1/4 hard metal steel made of electrolytic nickel are widely used in aircraft, tanks, naval ships, radar, missiles and spacecraft.
This product is an ideal substitute for pure nickel belt.
The internal resistance is only 1 / 4 of the traditional pure nickel strip
The weldability is 2 times higher than that of pure copper strip, and the welding method is reliable and simple.
Packing Details : Carton and wooden box packaging
Delivery Details : 2-5 days
Q: Are you trading or manufacturer ?
A: We are company,and we have our own factory
Q: How long is your delivery time?
A: Generally it is 2-3 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
