| Brand Name: | Huihua |
|---|---|
| Minimum Order Quantity: | 1kg |
| Price: | Negotiable |
| Delivery Time: | no limit |
| Payment Terms: | T/T |
| Supply Ability: | 100t/year |
| Material: | Copper/Aluminum | Type: | Li-Ion, Li-polymer |
|---|---|---|---|
| Application: | Lithium-ion Battery | Usage: | Tab |
| Advantage: | Welding | Size: | Can Be Customized |
| High Light: | nickel battery tabs,nickel solder tabs |
||

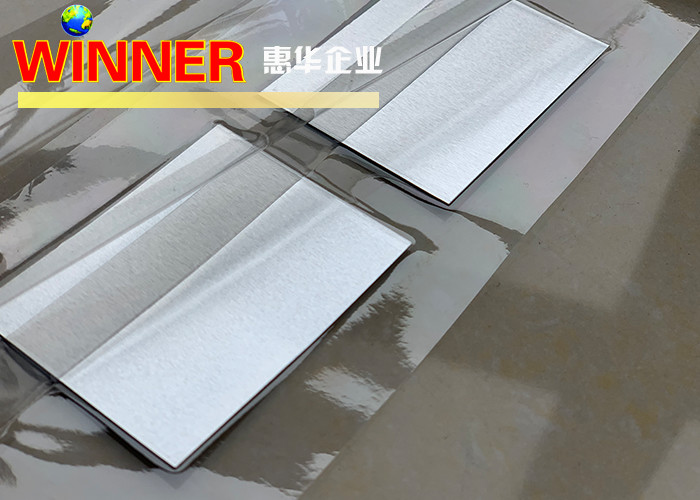

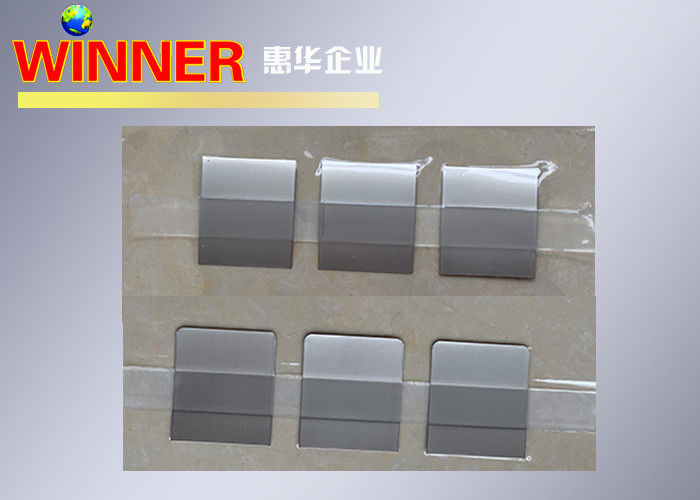

Li-ion Battery Tabs/ Aluminium and Nickel Tabs for Battery Connect to Anode/Cathode
Battery tabs play an important role in lithium-ion cell manufacturing. A typical large format lithium-ion cell uses copper foil as the anode current collector and aluminum as the cathode current collector. A ‘foil-to-tab’ weld is needed to gather all the current collector plates (foils) inside the cell and join them to a tab which exits the cell casing, allowing the cell’s energy to be transferred to an external source. There are two foil-to-tab welds in each cell, and hundreds of cells in a typical lithium-ion battery pack.
The aluminum-clad copper material tab provides a low cost and high-performance solution for li-ion battery tab joining. Nowadays, the leads or tabs from Li-ion pouch and prismatic cells are often configured with one lead of copper and the other lead of aluminum. This brings a challenge for welding copper to aluminum with the busbar. By replacing one of the leads with an aluminum-clad copper tab, the busbar joining can be applied to all aluminum to aluminum connections. This greatly simplifies the welding process.
Q: Are you trading or manufacturer ?
A: We are company,and we have our own factory
Q: How long is your delivery time?
A: Generally it is 2-3 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
