| Brand Name: | Huihua |
|---|---|
| Minimum Order Quantity: | 1kg |
| Price: | Negotiable |
| Delivery Time: | no limit |
| Payment Terms: | T/T |
| Supply Ability: | 100t/year |
| Material: | Pure Nickel | Usage: | Tab |
|---|---|---|---|
| Advantage: | Weldability | Grade: | N6/N4/Ni200 |
| Size: | 0.05-3.0MM | Standard: | International Standard |
| High Light: | high purity nickel strip,pure nickel foil,8mm Pure Nickel Strip |
||

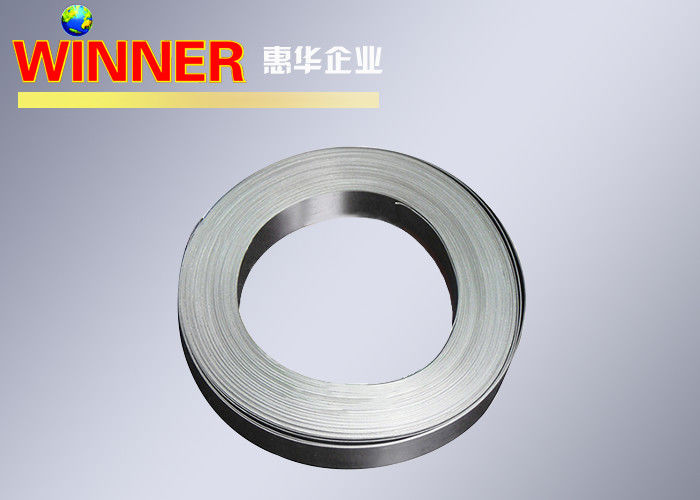

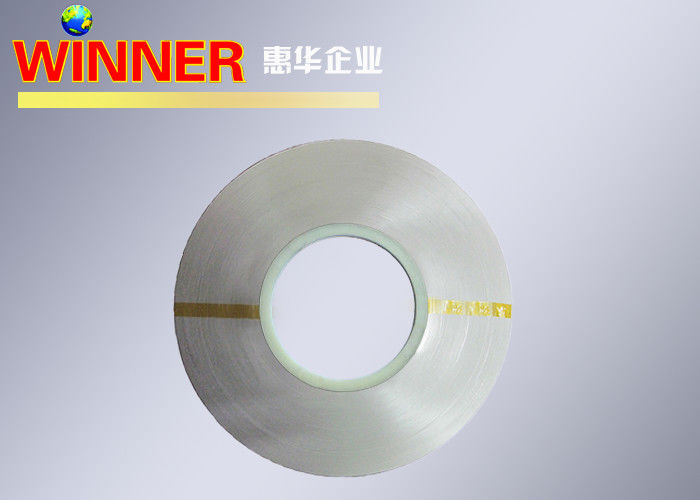

The 8mm wide pure nickel strip for battery production has good dry fluorine resistance
The conductivity of current through nickel is much greater than that of steel. This is what makes the Huihua roll of Pure Nickel Strip, which consists of 99.6% Nickel, ideal for spot welding and building battery packs. Lithium-ion cells are made in various sizes, often assembled into packs (commonly referred to as battery packs) for portable equipment. Many battery packs also include an internal protection circuit to prevent over-discharge and short-circuit damage. This can increase their physical length of the Lithium-ion battery pack. For example, an 18650 is around 65 mm (2.6 in) in length, but can be up to 68 mm (2.7 in) long if an internal protection circuit is added. To recharge these cells in a safe and economic fashion, the use of a charger specified for these cells is required. Some popular applications include but are not limited to, laptop battery packs, electronic cigarettes, electric vehicles, and cordless power tools. This package of Huihua 1kg (2.2lbs) Roll of Pure Nickel Strip is perfect for building battery packs.
| Parameter table | |
|
Type |
Nickel Strip |
| Grade | Pure Nickel |
| Size | 0.05-3.0MM |
| Ni (Min) | 99.6% |
| Color | nickel white |
| Application | 18650 battery pack |
Functions: this product is mainly used in manufacturing nickel-cadmium battery, nickel-hydrogen battery, lithium cell, assembled
battery, as well as industries of electric tool and special lights.All soft nickel aluminum strip for over welding
1. It has good luster, ductility and weldability
2. Pure nickel strip: the content of nickel is more than 99.6%. Pure nickel has excellent mechanical properties and high corrosion resistance in many different environments. It also has the characteristics of magnetostriction and magnetism, high heat transfer, high conductivity, low gas volume and low vapor pressure.
3. The difference between pure nickel 201 and pure nickel 200 is that the highest carbon content of the former is 0.02%, and that of the latter is 0.15%;
4. Pure nickel 201 has good corrosion resistance under high temperature and high concentration of alkali and chloride ion.
5. High power tool battery pack, notebook battery and aircraft model battery combination with pure nickel tape
6. It has good spot welding performance, high tensile tension, convenient operation and low resistivity (preferred for notebook battery pack combination)
7. It can pass a current of more than 50A. It is the first choice for the combination of power batteries. This product is mainly used in the manufacturing of NiMH batteries, lithium batteries, combination batteries and electric tools, communication information, special lights and other industries.
Packing Details : Carton and wooden box packaging
Delivery Details : 2-5 days
